100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting

  • 100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting
  • 100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting
  • 100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting
  • 100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting
Miejsce pochodzenia Guangdong, Chiny
Nazwa handlowa Miracle Bean
Orzecznictwo CE RoHs
Numer modelu XH-G10021P24 (RGBW) -D1a
Minimalne zamówienie 100szt
Cena negotiate
Szczegóły pakowania Karton
Czas dostawy 3-15 dni
Zasady płatności T/T, Western Union, L/C
Możliwość Supply 50000 sztuk miesięcznie
Szczegóły Produktu
Przedmiot Adresowalne punktowe źródło światła LED DMX512 Model XH-G10021P24 (RGBW) -D1a
Rozmiar 100mm Źródło światła LED SMD3535
LED Chip Ilty 21szt Moc Maks. 5,8 W
Napięcie wejściowe Napięcie stałe 24 V Protokół sterowania DMX512
Kolor RGBW Kąt wiązki 160 °
Ocena IP IP67 Długość drutu Standardowa 120 mm (konfigurowalna)
Temperatura pracy -20 ℃ ~+60 ℃ Długość życia 50000 godz
Gwarancja 2 lata Typ instalacji Zamontowany powierzchnia
Aplikacja Oświetlenie zewnętrzne elewacji budynku
Podkreślić

DMX512 Addressable RGBW IC Control

,

1.5W SMD3535 Point Light Source

,

30mm IP67 Outdoor LED Pixel
Zostaw wiadomość
opis produktu
100mm IP67 DMX512 Addressable RGBW LED Point Light SMD3535 24V for Building Facade Outdoor Lighting

Professional DMX512 addressable LED point light source featuring SMD3535+IC chipset with 4 high-brightness LED beads, 16.7M RGBW colors, and 65536-level grey scale for ultra-smooth color transitions at 30fps. IP67 waterproof rated with UL certified 2220 copper wire for permanent outdoor architectural lighting installations.

Technical Specifications
Model XH-G10021P24(RGBW)-D1a
Size 100mm
LED Light Source SMD3535
LED Chip Quantity 21pcs
Rated Power Max 5.8W
Input Voltage DC 24V
Control Protocol DMX512
Pixel Per Channel 5
Color RGBW
Beam Angle 160°
IP Rating IP67
Working Temperature -20℃ ~ +60℃
Wire Length 120mm Standard (Customizable)
Life Span 50000 Hrs
Warranty 2 Years
Key Features
  • RGBW Colors: 65536-level grey scale per channel delivers cinematic-quality color depth and smooth transitions
  • SMD3535+IC Integrated Chipset: Built-in driver IC reduces external component count and simplifies wiring
  • 21 High-Brightness LED Beads: Delivers max 5.8W output with excellent luminance for outdoor visibility
  • IP67 Waterproof Rating: Fully sealed for permanent outdoor installation in rain, snow, and extreme environments
  • Wide Operating Range: Functions reliably from -20℃ to +60℃ for global deployment
  • 120mm Standard Wire with Customization: Default 120mm wire length adaptable to project-specific requirements
Applications

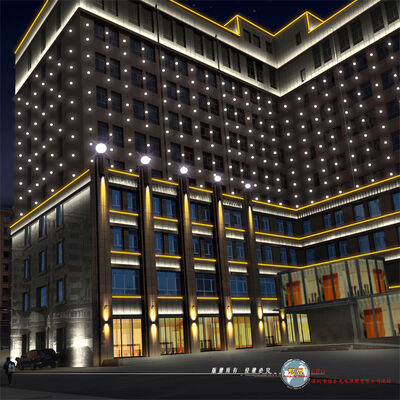

  • Building Facade Lighting and Media Facades
  • Bridge and Landmark Architectural Illumination
  • Commercial Plaza and Shopping Mall Decorative Lighting
  • Theme Park and Entertainment Venue Dynamic Displays
  • Stage Backdrop and Large-Scale Grid Screens
  • Outdoor Bar Screens and Mesh Display Systems
Our Services
  • Guaranteed 24-hour response time
  • Comprehensive English communication for all inquiries
  • OEM & ODM services available
  • Distributorship programs for proprietary designs and select standard models
  • Structured protection of sales territories, design IP, and confidential data
  • Lifelong technical support commitment
  • Optimized delivery framework: Stock models dispatched immediately, samples shipped upon payment, bulk orders fulfilled within 7 business days, custom projects within 15 business days
Trade Details
Payment Methods T/T, Western Union, Paypal, L/C
Port Shenzhen
Delivery Time 3-5 days for stock models; 7 working days for bulk orders; 15 working days for OEM/ODM orders
Packing Packed in carton
Shipping By air, by sea, express are supported
